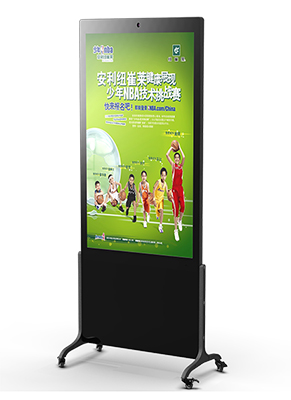

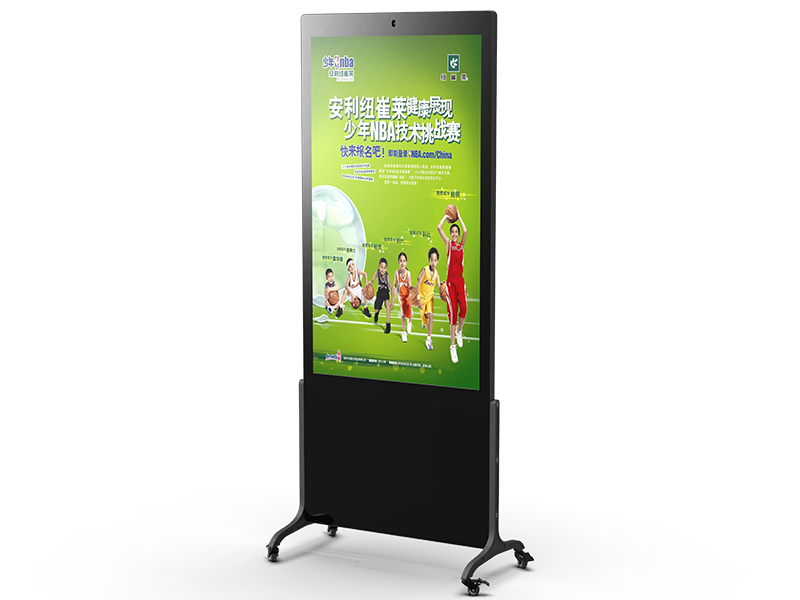

Freestanding Capacitive Touch Screen
Freestanding capacitive touch screen provide an easy and quick way to convey information, making them ideal for displaying menus, timetables, advertisements and a wide array of other information types. The self-standing structure makes them easy to move, ensuring a wide applicability in hotels, conference rooms, exhibition halls, and stadiums.
INNELL specializes in freestanding projected capacitive touch screens in a variety of sizes, formats, and interfaces. Customization service is also available to meet your needs.
PCAP Touch
10 Touch Points
Free of Contaminants
Commercial IPS Panel
Integrated Speakers- 24/7 Usage
- 10 Simultaneous Touch PointsOur PCAP touch screens feature a 10-point touch, allowing users to perform multiple actions to meet their needs, including flicks, pinch, expand, tap, click, and rotate.
- PCAP TouchBased on advanced capacitive interactive technology, this touch screen detects only fingers or styluses, which significantly reduces the risk of any accidental or unauthorized inputs.
- Surface TreatmentThe PCAP touch screen is designed with a tempered glass face with an anti-fingerprint oleophobic coating. This improves both usability and visibility during use, as well as reduces the appearance of fingerprints or oils on the LCD screen. In addition, this coating is also water, scratch and abrasion resistant.
- Commercial IPS PanelThe commercial IPS panel accurately displays an image’s quality and color depth at an ultra-wide viewing angle of 178°. The LCD screen remains bright, even in bad indoor lighting environments, as well as maintains the ultimate color temperature for lifelike images.
- Customized LayoutCustomize your screen with any media! Videos, websites, images, time, weather and more can all be edited to fit your layout. Important messages are highlighted as a moving scroll at the bottom of the screen.
Technical Parameters
| Panel | Panel Size | 43 | 49 | 55 | 65 |
| Product Size | 529.4 x 941.2 mm(W*H) | 607.5 x 1076.5 mm (W*H) | 680 x 1209 mm (W*H) | 805.32 x 1427.08 mm (W*H) | |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | |
| Resolution | 1920X1080 | 1920X1080 | 1920X1080 | 1920X1080 | |
| Color | 10.7M | 10.7M | 10.7M | 10.7M | |
| Brightness | 300cd/m2 | 350cd/m2 | 350cd/m2 | 400cd/m2 | |
| Contrast Ratio | 2000:1 | 2000:1 | 2000:1 | 2000:1 | |
| Viewing Angle | 178°(H) / 178°(V) | 178°(H) / 178°(V) | 178°(H) / 178°(V) | 178°(H) / 178°(V) | |
| Response Time | 6ms | 6ms | 6ms | 6ms | |
| Lifespan | 60000小时 | 60000小时 | 60000小时 | 60000小时 | |
| Electrical | Input Voltage | AC100V～240V | AC100V～240V | AC100V～240V | AC100V～240V |
| Power Consumption | ≤70W | ≤100W | ≤120W | ≤120W | |
| Standby Power Consumption | ≤3W | ≤3W | ≤3W | ≤3W | |
| Interactivity | Touch Points | 10 point | 10 point | 10 point | 10 point |
| Input Method | ＜10ms | ＜10ms | ＜10ms | ＜10ms | |
| Touch Life | 60 million touches on a single point | 60 million touches on a single point | 60 million touches on a single point | 60 million touches on a single point | |
| Touch Accuracy | ±1mm | ±1mm | ±1mm | ±1mm | |
| Environmental | Operating Temperature | 0℃～40℃ | 0℃～40℃ | 0℃～40℃ | 0℃～40℃ |
| Storage Temperature | -20℃～60℃ | -20℃～60℃ | -20℃～60℃ | -20℃～60℃ | |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% | 10%～90% | |
| Storage Humidity | 10%～90% | 10%～90% | 10%～90% | 10%～90% | |
| Dimensions | Unit Size | 619(W)x1800(H)x45(D)mm | 619(W)x1850(H)x45(D)mm | 775.9(W)x1900(H)x45(D)mm | 902.24(W)x2100(H)x45(D)mm |
Carton Package Size(W*H*D mm) Display Package Size Base Size | 1100*698*180 | 1264*788*180 | 1380*855*180 | 1598*978*180 | |
| 560*545*1050 | 560*545*1050 | 560*545*1050 | 560*545*1050 | ||
| Net Weight | 58KG | 66KG | 74KG | 84KG |
Request a quote?

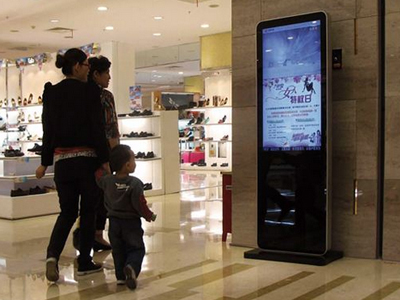

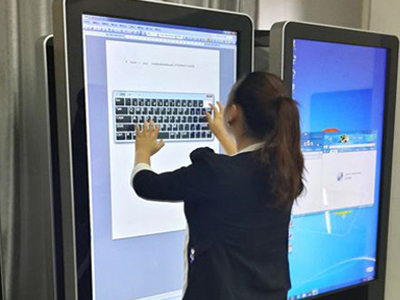

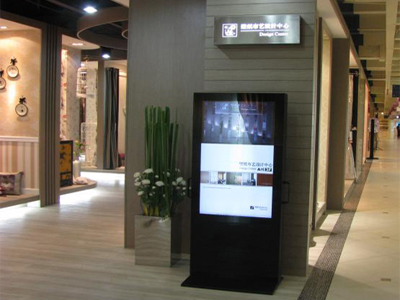

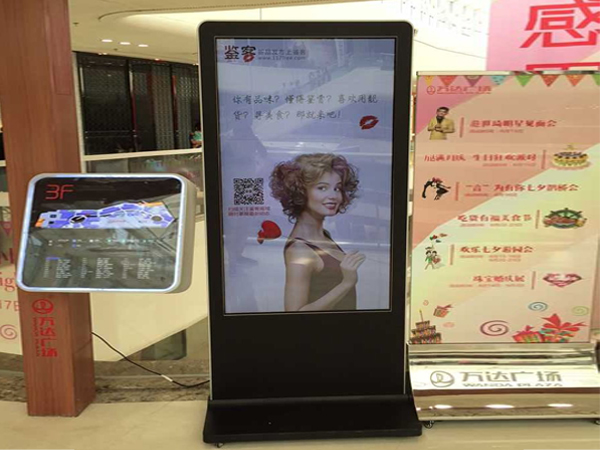

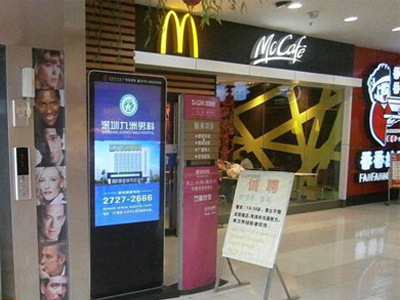

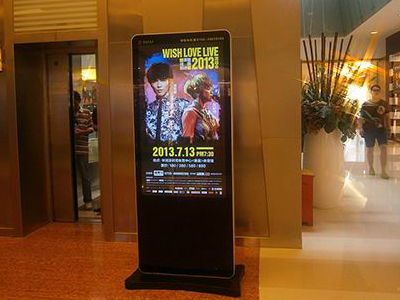

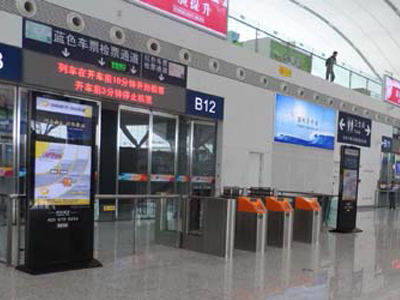

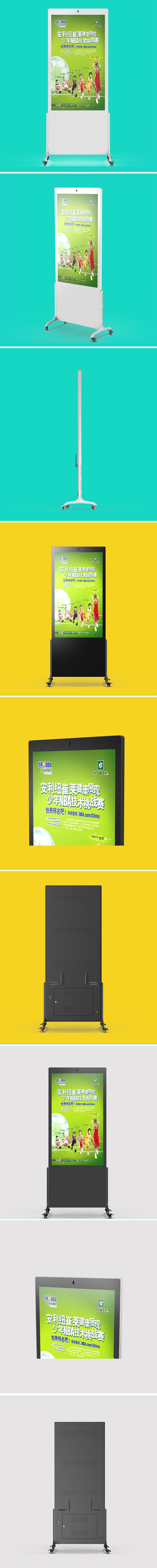

Photo Gallery
Optional System Solutions and Configurations
| Android System | Android system uses multimedia information management platform to manage multiple devices by internet and can update their images, audios, and videos at the same time. | |
| 1. Using RK3288 high performance processor | 2. The default version of Android OS is 5.1.1 (The version supporting bluetooth 4.0 is optional) | |
| 3. RAM: 2GB | 4. Storage: 8GB/16GB | |
| 5. Video Decoder: Supporting 1080×1920 resolution | 6. Play mode: Supporting loop playback, timed playback, intercut, split-screen and partition play, supporting multimedia materials combined play. | |
| 7. Supported Network Types: Ethernet, WIFI (3G/4G module is optional) | 8. Supported Video Formats: WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4, VOD, MOV, MKV, MP3, AAC, etc. | |
| 9. Supported Image Formats: JPEG, PNG, GIG, BMP, etc. | 10. Supported File Types: TXT, PPT, Word, Excel, etc. | |
| 11. Video Output: Supporting LVDS output | 12. Audio Output: Supporting HDMI output, left and right channel output, built-in 2×5W high quality loudspeakers | |
| 13. Information release system is optional: Supporting real-time clock (RTC), resume by alarm, updating playlist by U disk, U disk network upgrade, and remote control | 14. Input Ports: USB×2, TF card slot, DC | |
| 15. Output Ports: HDMI | ||
| Windows System | Windows system is very powerful. It supports mass application software, office software and app software. | |
| 1. Processor: Intel i3/i5/i7 (optional) | 2. RAM: 4GB/8GB | |
| 3. Storage: 128G/256G SSD | 4. Operation System: WINDOWS 7/10 Chinese or English version is optional | |
| 5. Video Decoder: Supporting 1080×1920 resolution | 6. Supported Network Types: Ethernet, WIFI (3G/4G module is optional) | |
| 7. Audio Output: Supporting left and right channel output, built-in 2×5W high quality loudspeaker | 8. Information release system is optional: Supporting real-time clock (RTC), resume by alarm, updating playlist by U disk, U disk network upgrade, and remote control | |
| 9. Input Ports: USB×4, DC, MIC | 10. Output Ports: VGA, HDMI, Audio | |
Our Service
Customization
Our technical support staff is made up of dedicated experts with years of industry experience. They are specialists in digital display customization to provide you with the best solution upon request.
Technical SupportFor technical assistance and troubleshooting, contact our technical support via phone or email, and professional engineers will provide you with the best solution. On-site service is available as well.
Repair and ReplacementAll LCD displays produced by INNELL are covered under a one-year warranty. Technical support and replacement parts are provided for free within the warranty period. Once the warranty expires, we will still provide technical support at affordable rates.

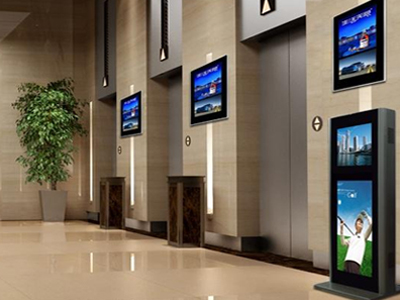

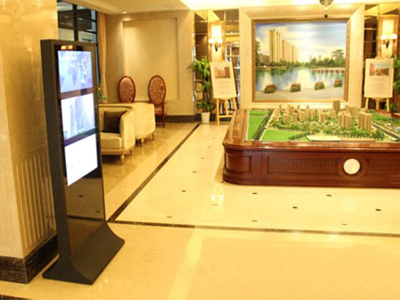

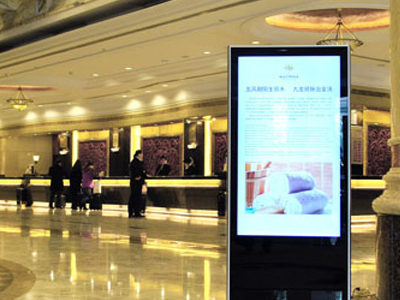

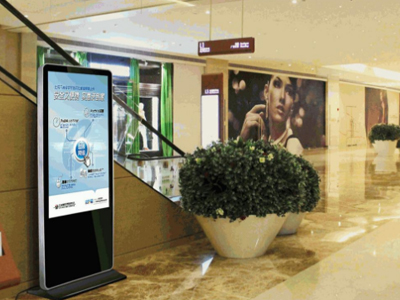

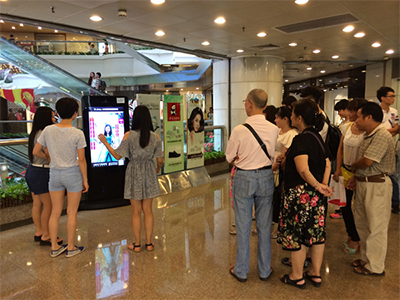

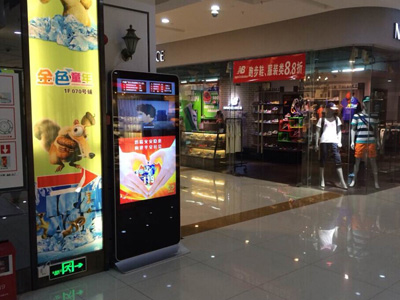

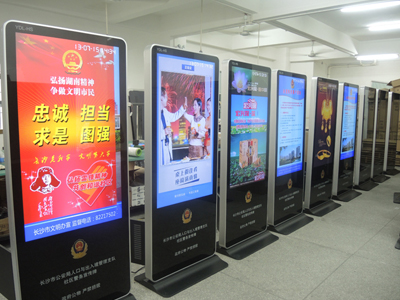

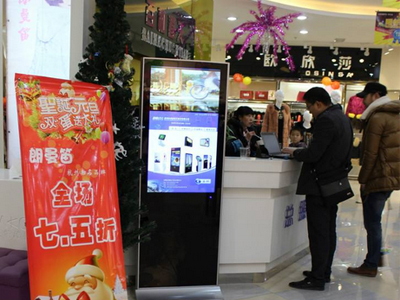

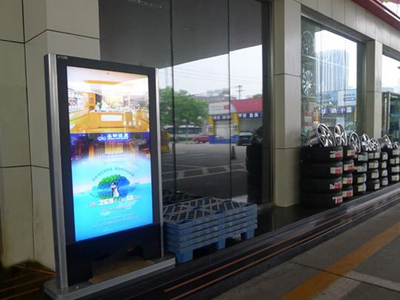

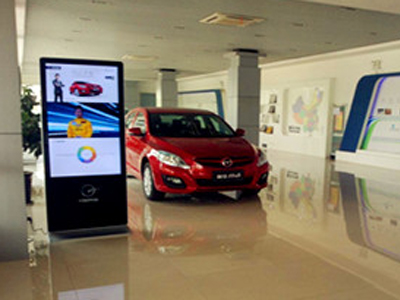

Gallery
