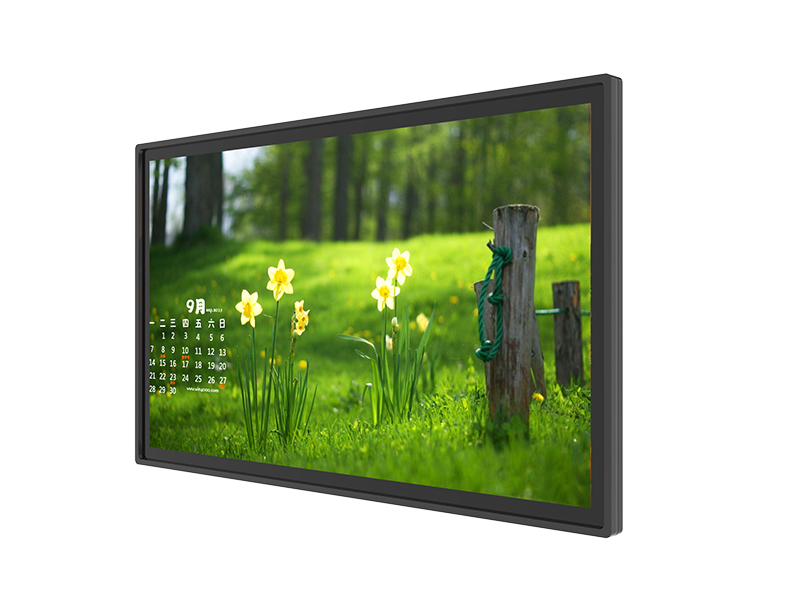

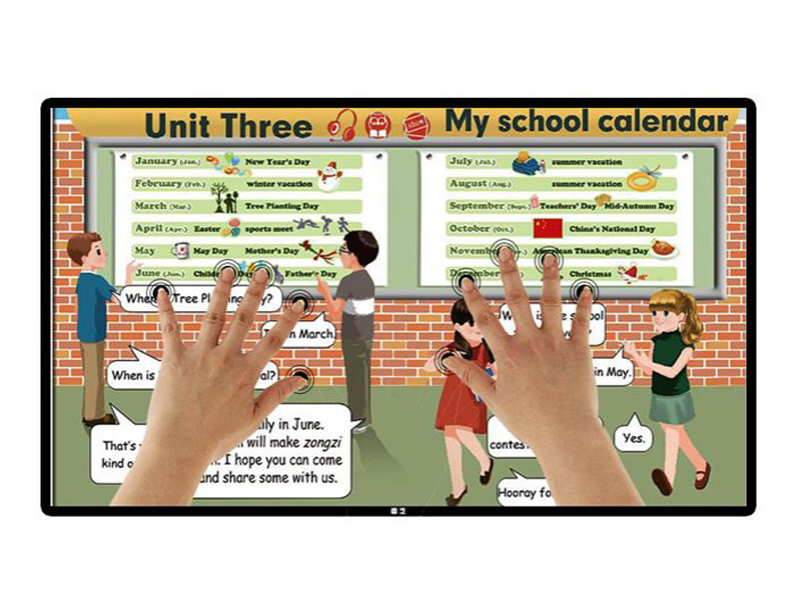

Wall Mounted Infrared Touch Screen
Infrared touch screen has a grid-like array of LED lights and photo detectors (sensors) around the edges of the device, so that when touched, the infrared interrupts the continuous LED backlight beam, thereby displaying information.
INNELL offers wall mounted infrared touch screen in a size range of 18.5 to 65 inches for customers to choose from. Wall mounted infrared touch screens larger than 65 inches can also be customized to meet unique customer needs.
Infrared Touch Screen
10-Point Multi-Touch
24/7 Usage
Commercial IPS Panel
Technical support
1-Year Warranty
- 24/7 Usage Infrared touch screens are built with commercial grade panels and components as they are designed to run 24/7 for more than 60,000 hours.
- LED BlacklightThe LED backlight significantly improves the brightness and contrast, as well as improves the wall display’s lifespan while reducing power consumption.
- Infrared Touch ScreenInfrared touch screens are stronger and more durable than their capacitive counterparts and are designed for commercial use. They are also more cost-efficient than capacitive touch screens.
- The Infrared Touch Screen We Offer Our infrared touch screen features up to 10 touch point to support zooming, rotating, scrolling, and more.
- Surface TreatmentThe PCAP touch screen is designed with a tempered glass face with an anti-fingerprint oleophobic coating to improve both usability and visibility by reducing the appearance of fingerprints and oils on the LCD screen. In addition, this coating is resistant to water, scratching, and abrasion.
Technical Parameters
| Panel | Panel Size | 43 | 49 | 55 | 65 |
| Product Size | 941.2 x 529.4 mm (W*H) | 1076.5 x 607.5 mm (W*H) | 1209 x 680 mm (W*H) | 1427.08 x 805.32 mm (W*H) | |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | |
| Color | 10.7M | 10.7M | 10.7M | 10.7M | |
| Brightness(Cm/M2) | 300cd/m2 | 350cd/m2 | 350cd/m2 | 400cd/m2 | |
| Contrast Ratio | 2000:1 | 2000:1 | 2000:1 | 2000:1 | |
| Viewing Angle | 178°(H) / 178°(V) | 178°(H) / 178°(V) | 178°(H) / 178°(V) | 178°(H) / 178°(V) | |
| Response Time | 6ms | 6ms | 6ms | 6ms | |
| Lifespan | 60000h | 60000h | 60000h | 60000h | |
| Electrical | Input Voltage | AC100V～240V | AC100V～240V | AC100V～240V | AC100V～240V |
| Power Consumption | ≤70W | ≤100W | ≤120W | ≤120W | |
| Standby Power Consumption | ≤3W | ≤3W | ≤3W | ≤3W | |
| Interactivity | Touch Points | 10 points multi-touch | 10 points multi-touch | 10 points multi-touch | 10 points multi-touch |
| Input Method | Finger or gloved hand activation | Finger or gloved hand activation | Finger or gloved hand activation | Finger or gloved hand activation | |
| Dot Pitch | ≥5mm | ≥5mm | ≥5mm | ≥5mm | |
| Touch Life | 60 million touches on a single point | 60 million touches on a single point | 60 million touches on a single point | 60 million touches on a single point | |
| Touch Accuracy | ±1mm | ±1mm | ±1mm | ±1mm | |
| Environmental | Operating Temperature | 0℃～40℃ | 0℃～40℃ | 0℃～40℃ | 0℃～40℃ |
| Storage Temperature | -20℃～60℃ | -20℃～60℃ | -20℃～60℃ | -20℃～60℃ | |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% | 10%～90% | |
| Storage Humidity | 10%～90% | 10%～90% | 10%～90% | 10%～90% | |
| Dimensions | Unit Size(W*H*D Mm) | 1010.8(W)x599(H)x82.3(D) | 1140.9(W)x671.9(H)x82.3(D) | 1284.9(W)x755.9(H)x86.3(D) | 1504(W)x882.24(H)x86.3(D) |
Carton Package Size(W*H*D mm) Display Package Size Base Size | 1100*698*180 | 1264*788*180 | 1380*855*180 | 1598*978*180 | |
| 560*545*1050 | 560*545*1050 | 560*545*1050 | 560*545*1050 | ||
| Net Weight | 5.5kg | 38KG | 42KG | 59KG |
Request a quote?

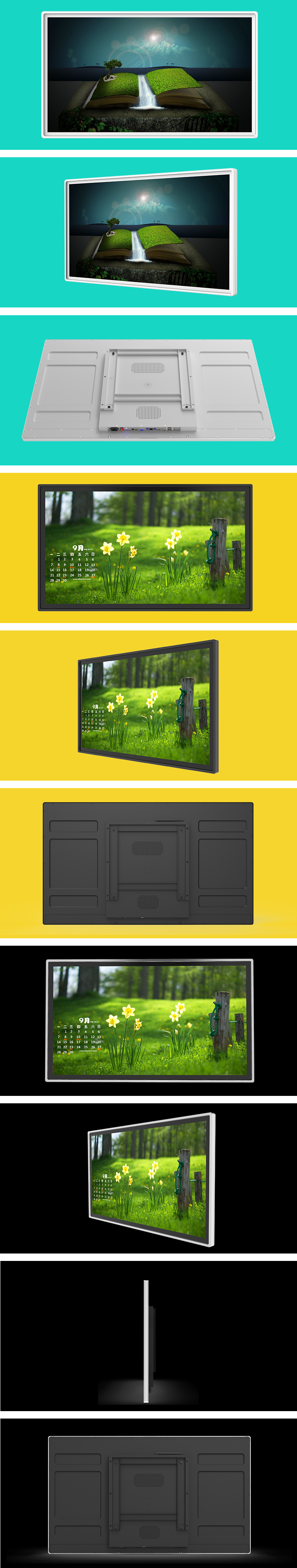

Photo Gallery
Optional System Solutions and Configurations
| Android System | Android system uses multimedia information management platform to manage multiple devices by internet and can update their images, audios, and videos at the same time. | |
| 1. Using RK3288 high performance processor | 2. The default version of Android OS is 5.1.1 (The version supporting bluetooth 4.0 is optional) | |
| 3. RAM: 2GB | 4. Storage: 8GB/16GB | |
| 5. Video Decoder: Supporting 1080×1920 resolution | 6. Play mode: Supporting loop playback, timed playback, intercut, split-screen and partition play, supporting multimedia materials combined play. | |
| 7. Supported Network Types: Ethernet, WIFI (3G/4G module is optional) | 8. Supported Video Formats: WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4, VOD, MOV, MKV, MP3, AAC, etc. | |
| 9. Supported Image Formats: JPEG, PNG, GIG, BMP, etc. | 10. Supported File Types: TXT, PPT, Word, Excel, etc. | |
| 11. Video Output: Supporting LVDS output | 12. Audio Output: Supporting HDMI output, left and right channel output, built-in 2×5W high quality loudspeakers | |
| 13. Information release system is optional: Supporting real-time clock (RTC), resume by alarm, updating playlist by U disk, U disk network upgrade, and remote control | 14. Input Ports: USB×2, TF card slot, DC | |
| 15. Output Ports: HDMI | ||
| Windows System | Windows system is very powerful. It supports mass application software, office software and app software. | |
| 1. Processor: Intel i3/i5/i7 (optional) | 2. RAM: 4GB/8GB | |
| 3. Storage: 128G/256G SSD | 4. Operation System: WINDOWS 7/10 Chinese or English version is optional | |
| 5. Video Decoder: Supporting 1080×1920 resolution | 6. Supported Network Types: Ethernet, WIFI (3G/4G module is optional) | |
| 7. Audio Output: Supporting left and right channel output, built-in 2×5W high quality loudspeaker | 8. Information release system is optional: Supporting real-time clock (RTC), resume by alarm, updating playlist by U disk, U disk network upgrade, and remote control | |
| 9. Input Ports: USB×4, DC, MIC | 10. Output Ports: VGA, HDMI, Audio | |
Our Service
Customization
Our technical support staff is made up of dedicated experts with years of industry experience. They are specialists in digital display customization to provide you with the best solution upon request.- Technical SupportFor technical assistance and troubleshooting, contact our technical support via phone or email, and professional engineers will provide you with the best solution. On-site service is available as well.
Repair and ReplacementAll LCD displays produced by INNELL are covered under a one-year warranty. Technical support and replacement parts are provided for free within the warranty period. Once the warranty expires, we will still provide technical support at affordable rates.

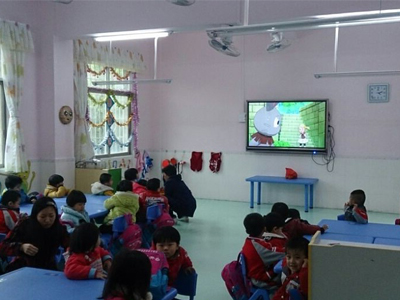

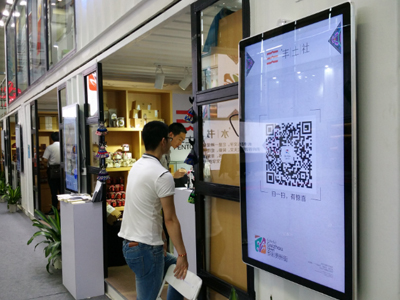

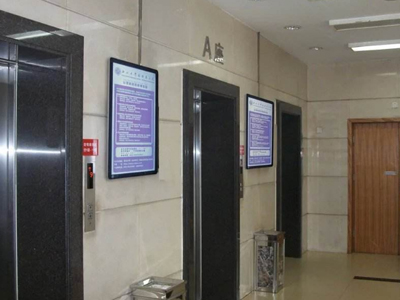

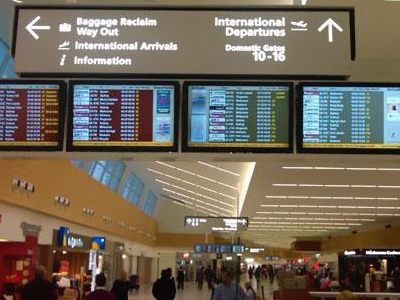

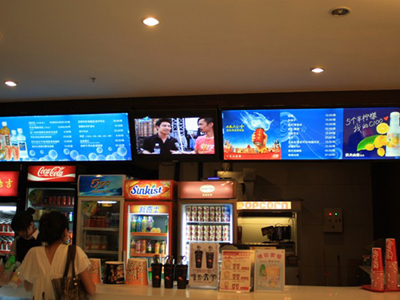

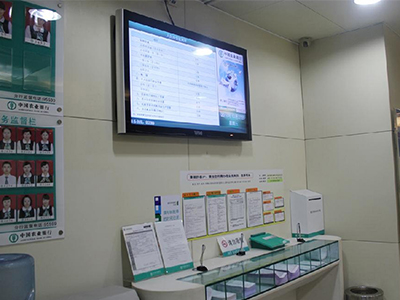

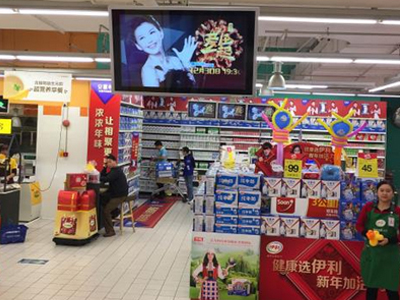

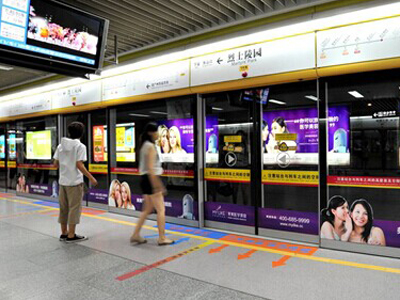

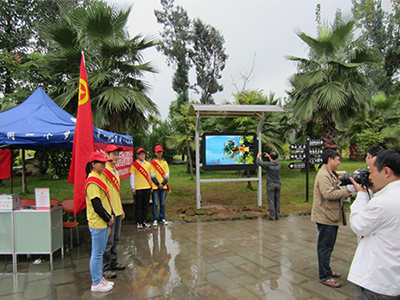

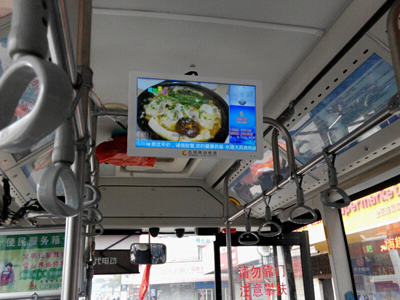

Gallery
