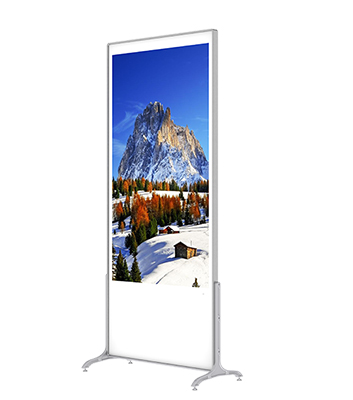

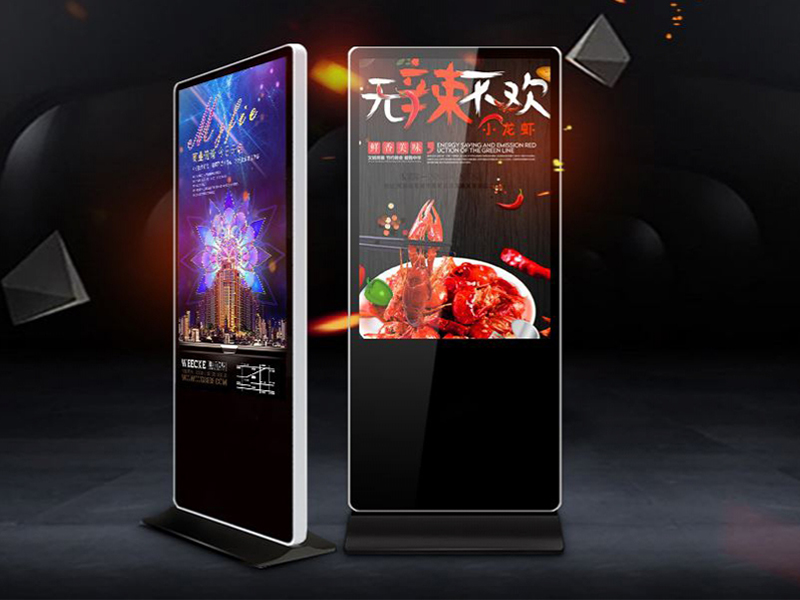

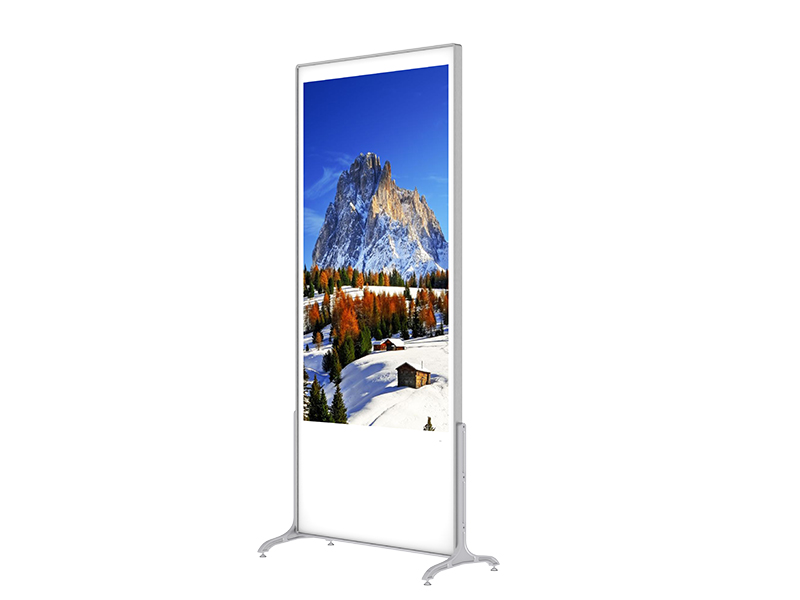

Freestanding Infrared Touch Screen
Freestanding infrared touch screens are activated using a finger or stylus, as the touchscreen is designed to respond to pressure. Embedded IR sensors inside the touch frame guarantee outstanding image quality, making the freestanding infrared touch screens extremely popular in public locations such as malls and restaurants. Not only does it feature a tempered glass screen for a higher durability, but it also features an oleophobic coating to reduce appearances and visibility of fingerprints and oils on the screen for an excellent usability and visibility.
INNELL offers freestanding infrared touch screens in a size range of 43 to 65 inches for customers to choose from. We also offer customization services upon request.
Infrared Touch Screen
10-Point Multi-Touch
24/7 Usage
Commercial IPS Panel
Technical support
1-Year Warranty
- Infrared Touch ScreenInfrared touch screens are stronger and more durable than their capacitive counterpart. They are designed for commercial use and are the most cost-efficient display solution.
- The Infrared Touch Screen We Offer Our infrared touch screens feature 10 touch points to support most gestures, including zooming, rotating, scrolling, and more.
- LED BlacklightThe LED backlight significantly improves the brightness and contrast, as well as improves the screen service life and reduces power consumption.
- 24/7 Usage The infrared touch screen is built with a commercial grade panel and components, as it is designed to run 24/7 for more than 60,000 hours.
- Surface TreatmentThe free-standing touch screen is designed with tempered glass face with a fingerprint prevention oleophobic coating. This design improves both the usability and visibility during use, as it reduces the appearance of fingerprints and oils on the LCD screen. In addition, this coating is resistant to water, scratches, and abrasion.
Technical Parameters
| Panel | Panel Size | 43 | 49 | 55 | 65 |
| Product Size | 529.4 x 941.2 mm(W*H) | 607.5 x 1076.5 mm (W*H) | 680 x 1209 mm (W*H) | 805.32 x 1427.08 mm (W*H) | |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | |
| Resolution | 1920X1080 | 1920X1080 | 1920X1080 | 1920X1080 | |
| Color | 10.7M | 10.7M | 10.7M | 10.7M | |
| Brightness | 300cd/m2 | 350cd/m2 | 350cd/m2 | 400cd/m2 | |
| Contrast Ratio | 2000:1 | 2000:1 | 2000:1 | 2000:1 | |
| Viewing Angle | 178°(H) / 178°(V) | 178°(H) / 178°(V) | 178°(H) / 178°(V) | 178°(H) / 178°(V) | |
| Response Time | 6ms | 6ms | 6ms | 6ms | |
| Lifespan | 60000小时 | 60000小时 | 60000小时 | 60000小时 | |
| Electrical | Input Voltage | AC100V～240V | AC100V～240V | AC100V～240V | AC100V～240V |
| Power Consumption | ≤70W | ≤100W | ≤120W | ≤120W | |
| Standby Power Consumption | ≤3W | ≤3W | ≤3W | ≤3W | |
| Interactivity | Touch Points | 10 simultaneous touch points | 10 simultaneous touch points | 10 points multi-touch | 10 points multi-touch |
| Input Method | Finger or gloved hand activation | Finger or gloved hand activation | Finger or gloved hand activation | Finger or gloved hand activation | |
| Dot Pitch | ≥5mm | ≥5mm | ≥5mm | ≥5mm | |
| Touch Life | 60 million touches on a single point | 60 million touches on a single point | 60 million touches on a single point | 60 million touches on a single point | |
| Touch Accuracy | ±1mm | ±1mm | ±1mm | ±1mm | |
| Environmental | Operating Temperature | 0℃～40℃ | 0℃～40℃ | 0℃～40℃ | 0℃～40℃ |
| Storage Temperature | -20℃～60℃ | -20℃～60℃ | -20℃～60℃ | -20℃～60℃ | |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% | 10%～90% | |
| Storage Humidity | 10%～90% | 10%～90% | 10%～90% | 10%～90% | |
| Dimensions | Unit Size | 619(W)x1800(H)x45(D)mm | 619(W)x1850(H)x45(D)mm | 775.9(W)x1900(H)x45(D)mm | 902.24(W)x2100(H)x45(D)mm |
Carton Package Size(W*H*D mm) Display Package Size Base Size | 1100*698*180 | 1264*788*180 | 1380*855*180 | 1598*978*180 | |
| 560*545*1050 | 560*545*1050 | 560*545*1050 | 560*545*1050 | ||
| Net Weight | 58KG | 66KG | 74KG | 84KG |
Request a quote?

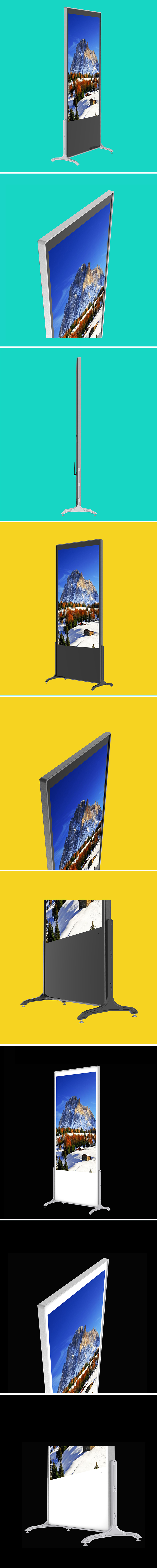

Photo Gallery
Optional System Solutions and Configurations
| Android System | Android system uses multimedia information management platform to manage multiple devices by internet and can update their images, audios, and videos at the same time. | |
| 1. Using RK3288 high performance processor | 2. The default version of Android OS is 5.1.1 (The version supporting bluetooth 4.0 is optional) | |
| 3. RAM: 2GB | 4. Storage: 8GB/16GB | |
| 5. Video Decoder: Supporting 1080×1920 resolution | 6. Play mode: Supporting loop playback, timed playback, intercut, split-screen and partition play, supporting multimedia materials combined play. | |
| 7. Supported Network Types: Ethernet, WIFI (3G/4G module is optional) | 8. Supported Video Formats: WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4, VOD, MOV, MKV, MP3, AAC, etc. | |
| 9. Supported Image Formats: JPEG, PNG, GIG, BMP, etc. | 10. Supported File Types: TXT, PPT, Word, Excel, etc. | |
| 11. Video Output: Supporting LVDS output | 12. Audio Output: Supporting HDMI output, left and right channel output, built-in 2×5W high quality loudspeakers | |
| 13. Information release system is optional: Supporting real-time clock (RTC), resume by alarm, updating playlist by U disk, U disk network upgrade, and remote control | 14. Input Ports: USB×2, TF card slot, DC | |
| 15. Output Ports: HDMI | ||
| Windows System | Windows system is very powerful. It supports mass application software, office software and app software. | |
| 1. Processor: Intel i3/i5/i7 (optional) | 2. RAM: 4GB/8GB | |
| 3. Storage: 128G/256G SSD | 4. Operation System: WINDOWS 7/10 Chinese or English version is optional | |
| 5. Video Decoder: Supporting 1080×1920 resolution | 6. Supported Network Types: Ethernet, WIFI (3G/4G module is optional) | |
| 7. Audio Output: Supporting left and right channel output, built-in 2×5W high quality loudspeaker | 8. Information release system is optional: Supporting real-time clock (RTC), resume by alarm, updating playlist by U disk, U disk network upgrade, and remote control | |
| 9. Input Ports: USB×4, DC, MIC | 10. Output Ports: VGA, HDMI, Audio | |
Our Service
Customization
Our technical support staff is made up of dedicated experts with years of industry experience. They are specialists in digital display customization to provide you with the best solution upon request.- Technical SupportFor technical assistance and troubleshooting, contact our technical support via phone or email, and professional engineers will provide you with the best solution. On-site service is available as well.
Repair and ReplacementAll LCD displays produced by INNELL are covered under a one-year warranty. Technical support and replacement parts are provided for free within the warranty period. Once the warranty expires, we will still provide technical support at affordable rates.
