Ergonomically designed with a tablet PC, the touch screen computer kiosk allows users to easily interact with the screen. The aluminum alloy frame design and high-grade tempered glass screen offer an excellent abrasion and scratch resistance for damage prevention, making it ideal for use in business work.
Our touch screen computer kiosk has 10 touch points to allow you to zoom in, zoom out or rotate the image. Several people can interact with the display at the same time. INNELL offers touch screen computer kiosks with the panel PC ranging in size from 18.5 to 65 inches according to different customer requirements.
LED BacklightThe LED backlight ensures the touch screen brightness and contrast, as well as improves the service life and reduces power consumption.
24/7 UsageInfrared touch screens built with commercial grade panel and components are designed to run 24/7 for more than 60,000 hours.
Surface TreatmentThe PCAP touch screen is designed with tempered glass face with a fingerprint resistant oleophobic coating. This design improves usability and visibility during usage, as it reduces the appearance of fingerprints and oils on the LCD screen. In addition, this coating is water, scratch, and abrasion resistant.
Customized LayoutCustomize your screen with any media such as videos, websites, images, time, weather and more, as all these modules can be edited to fit your layout. Important messages are highlighted by scrolling at the bottom of the screen.
Technical Parameters
Panel
Panel Size
18.5
21.5
23.6
27
32
43
49
55
65
Product Size
410.4 x 231 mm(W*H)
476.84 x 268.31 mm (W*H)
522.22 x 294.22 mm(W*H)
599 x 337.2 mm (W*H)
699 x 392.8 mm (W*H)
941.2 x 529.4 mm (W*H)
1076.5 x 607.5 mm (W*H)
1209 x 680 mm (W*H)
1427.08 x 805.32 mm (W*H)
Aspect Ratio
16:9
16:9
16:9
16:9
16:9
16:9
16:9
16:9
16:9
Resolution
1920×1080
1920×1080
1920×1080
1920×1080
1920×1080
1920×1080
1920×1080
1920×1080
1920×1080
Color
10.7M
10.7M
10.7M
10.7M
10.7M
10.7M
10.7M
10.7M
10.7M
Brightness(cm/m2)
250cd/m2
250cd/m2
250cd/m2
250cd/m2
300cd/m2
300cd/m2
350cd/m2
350cd/m2
400cd/m2
Contrast Ratio
2000:1
2000:1
2000:1
2000:1
2000:1
2000:1
2000:1
2000:1
2000:1
Viewing Angle
178°(H) / 178°(V)
178°(H) / 178°(V)
178°(H) / 178°(V)
178°(H) / 178°(V)
178°(H) / 178°(V)
178°(H) / 178°(V)
178°(H) / 178°(V)
178°(H) / 178°(V)
178°(H) / 178°(V)
Response Time
6ms
6ms
6ms
6ms
6ms
6ms
6ms
6ms
6ms
Lifespan
60000h
60000h
60000h
60000h
60000h
60000h
60000h
60000h
60000h
Electrical
Input Voltage
AC100V～240V
AC100V～240V
AC100V～240V
AC100V～240V
AC100V～240V
AC100V～240V
AC100V～240V
AC100V～240V
AC100V～240V
Power Consumption
≤28W
≤28W
≤35W
≤36W
≤55W
≤70W
≤100W
≤120W
≤120W
Standby Power Consumption
≤3W
≤3W
≤3W
≤3W
≤3W
≤3W
≤3W
≤3W
≤3W
Interactivity
Touch Points
10 point
10 point
10 point
10 point
10 point
10 point
10 point
10 point
10 point
Input Method
＜10ms
＜10ms
＜10ms
＜10ms
＜10ms
＜10ms
＜10ms
＜10ms
＜10ms
Touch Life
60 million touches on a single point
60 million touches on a single point
60 million touches on a single point
60 million touches on a single point
60 million touches on a single point
60 million touches on a single point
60 million touches on a single point
60 million touches on a single point
60 million touches on a single point
Touch Accuracy
±1mm
±1mm
±1mm
±1mm
±1mm
±1mm
±1mm
±1mm
±1mm
Environmental
Operating Temperature
0℃～40℃
0℃～40℃
0℃～40℃
0℃～40℃
0℃～40℃
0℃～40℃
0℃～40℃
0℃～40℃
0℃～40℃
Storage Temperature
-20℃～60℃
-20℃～60℃
-20℃～60℃
-20℃～60℃
-20℃～60℃
-20℃～60℃
-20℃～60℃
-20℃～60℃
-20℃～60℃
Operating Humidity
10%～90%
10%～90%
10%～90%
10%～90%
10%～90%
10%～90%
10%～90%
10%～90%
10%～90%
Storage Humidity
10%～90%
10%～90%
10%～90%
10%～90%
10%～90%
10%～90%
10%～90%
10%～90%
10%～90%
Dimensions
Unit Size(W*H*D Mm)
466.4(W)x287(H)x62(D)
530.84(W)x322.31(H)x62(D)
283.8(W)x355.8(H)x62(D)
655(W)x393.2(H)x62(D)
758(W)x541.8(H)x69.8(D)
1010.8(W)x599(H)x82.3(D)
1140.9(W)x671.9(H)x82.3(D)
1284.9(W)x755.9(H)x86.3(D)
1504(W)x882.24(H)x86.3(D)
Carton Package Size(W*H*D mm)
Display Package Size
Base Size
590*390*130
608*410*130
678*450*130
725*490*135
832*555*150
1100*698*180
1264*788*180
1380*855*180
1598*978*180
460*390*990
460*390*990
460*390*990
460*390*990
560x545x1050
560x545x1050
560x545x1050
560x545x1050
560x545x1050
Net Weight
5.5kg
8kg
10kg
12KG
18KG
32KG
38KG
42KG
59KG
Request a quote?

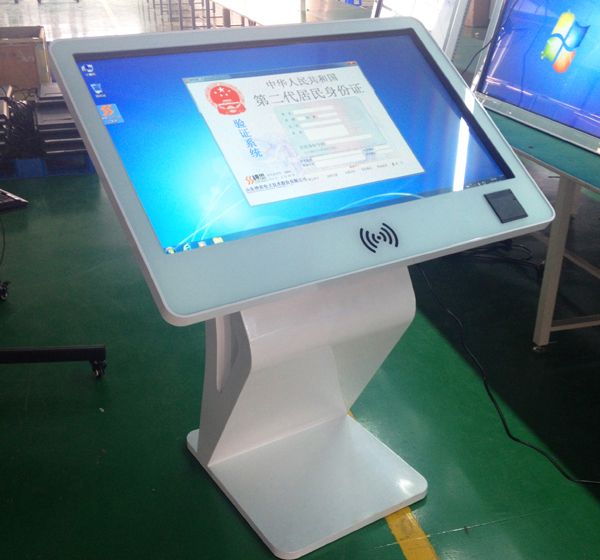

Photo Gallery
Optional System Solutions and Configurations
Android System
Android system uses multimedia information management platform to manage multiple devices by internet and can update their images, audios, and videos at the same time.
1. Using RK3288 high performance processor
2. The default version of Android OS is 5.1.1 (The version supporting bluetooth 4.0 is optional)
3. RAM: 2GB
4. Storage: 8GB/16GB
5. Video Decoder: Supporting 1080×1920 resolution
6. Play mode: Supporting loop playback, timed playback, intercut, split-screen and partition play, supporting multimedia materials combined play.
7. Supported Network Types: Ethernet, WIFI (3G/4G module is optional)
8. Supported Video Formats: WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4, VOD, MOV, MKV, MP3, AAC, etc.
9. Supported Image Formats: JPEG, PNG, GIG, BMP, etc.
10. Supported File Types: TXT, PPT, Word, Excel, etc.
11. Video Output: Supporting LVDS output
12. Audio Output: Supporting HDMI output, left and right channel output, built-in 2×5W high quality loudspeakers
13. Information release system is optional: Supporting real-time clock (RTC), resume by alarm, updating playlist by U disk, U disk network upgrade, and remote control
14. Input Ports: USB×2, TF card slot, DC
15. Output Ports: HDMI
Windows System
Windows system is very powerful. It supports mass application software, office software and app software.
1. Processor: Intel i3/i5/i7 (optional)
2. RAM: 4GB/8GB
3. Storage: 128G/256G SSD
4. Operation System: WINDOWS 7/10 Chinese or English version is optional
5. Video Decoder: Supporting 1080×1920 resolution
6. Supported Network Types: Ethernet, WIFI (3G/4G module is optional)
7. Audio Output: Supporting left and right channel output, built-in 2×5W high quality loudspeaker
8. Information release system is optional: Supporting real-time clock (RTC), resume by alarm, updating playlist by U disk, U disk network upgrade, and remote control
9. Input Ports: USB×4, DC, MIC
10. Output Ports: VGA, HDMI, Audio
Note: Each optional system solution is of different prices. Please choose from them according to your requirements!
