65 Inch Freestanding Digital Advertising Display
- Designed for public spaces
- Plug and play USB media player
- Commercial Grade IPS Panel
- Full High Definition 1080p
- Scrolling Text
- 24/7 Usage
- Power Timer
- Optional Network Upgrade
Technical Parameters
| Panel | Panel Size | 65 |
| Product Size | 805.32 x 1427.08 mm (W*H) | |
| Aspect Ratio | 16:9 | |
| Backlight | LED | |
| Resolution | 1920X1080 | |
| Color | 10.7M | |
| Brightness(cm/m2) | 400cd/m2 | |
| Contrast Ratio | 2000:1 | |
| Viewing Angle | 178°(H) / 178°(V) | |
| Response Time | 6ms | |
| Lifespan | 60000h | |
| Electrical | Input Voltage | AC100V～240V |
| Power Consumption(W) | ≤120W | |
| Standby Power Consumption(W) | ≤3W | |
| Environmental | Operating Temperature | 0℃～40℃ |
| Storage Temperature | -20℃～60℃ | |
| Operating Humidity | 10%～90% | |
| Storage Humidity | 10%～90% | |
| Dimension | Product Size(W*H*D mm) | 902.24(W)x2100(H)x45(D)mm |
| Package Size(W*H*D mm) | 2150*1050*210mm | |
| Net Weight | 84KG |
Request a quote?

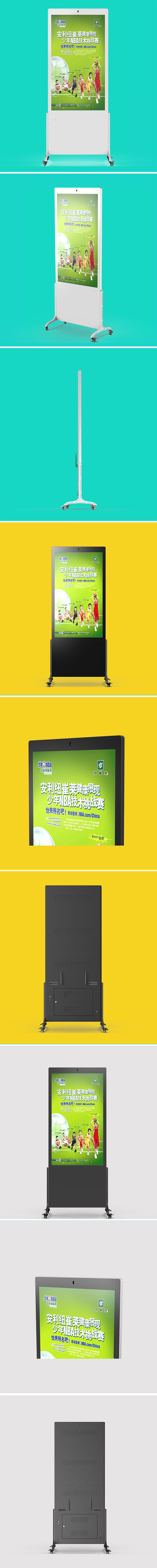

Photo Gallery
Optional System Solutions and Configurations
| Freestanding System | Freestanding system uses U disk or SD card to input display information and update advertising. It can’t connect to internet. | |
| 1. Supported Languages: English, French, Spanish, Japanese, Korean, Russian, etc. | 2. Supported Video Formats: MP4, AVI, DIVX, XVID, VOB, DAT, MPG, RM, RMVB, MKB, MOV, HDMOV, M4V, PMP, AVC, FLV | |
| 3. Supported File System: FAT/FAT32/NTFS | 4. Supported Audio Formats: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE | |
| 5. Supported Image Formats: JPEG, BMP, GIF, PNG | 6. Scrolling Marquee: maximum 1000 words | |
| 7. Support time display and timer switch | 8. Support loop playback | |
| 9. Input ports: USB×2, SD card slot | ||
| Android System | Android system uses multimedia information management platform to manage multiple devices by internet and can update their images, audios, and videos at the same time. | |
| 1. Using RK3188 high performance processor | 2. The default version of Android OS is 4.4.4 ( The version supporting bluetooth 4.0 is optional) | |
| 3. RAM: 1GB/2GB | 4. Storage: 8GB/16GB | |
| 5. Video Decoder: Supporting 1080×1920 resolution | 6. Play mode: Supporting loop playback, timed playback, intercut, split-screen and partition play, supporting multimedia materials combined play. | |
| 7. Supported Network Types: Ethernet, WIFI (3G/4G module is optional) | 8. Supported Video Formats: WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4, VOD, MOV, MKV, MP3, AAC, etc. | |
| 9. Supported Image Formats: JPEG, PNG, GIG, BMP, etc. | 10. Supported File Types: TXT, PPT, Word, Excel, etc. | |
| 11. Video Output: Supporting LVDS output | 12. Audio Output: Supporting HDMI output, left and right channel output, built-in 2×5W high quality loudspeakers | |
| 13. Information release system is optional: Supporting real-time clock (RTC), resume by alarm, updating playlist by U disk, U disk network upgrade, and remote control | 14. Input Ports: USB×2, TF card slot, DC | |
| 15. Output Ports: HDMI | ||
| Windows System | Windows system is very powerful. It supports mass application software, office software and app software. | |
| 1. Processor: Intel i3/i5/i7 (optional) | 2. RAM: 4GB/8GB | |
| 3. Storage: 128G/256G SSD | 4. Operation System: WINDOWS 7/10 Chinese or English version is optional | |
| 5. Video Decoder: Supporting 1080×1920 resolution | 6. Supported Network Types: Ethernet, WIFI (3G/4G module is optional) | |
| 7. Audio Output: Supporting left and right channel output, built-in 2×5W high quality loudspeaker | 8. Information release system is optional: Supporting real-time clock (RTC), resume by alarm, updating playlist by U disk, U disk network upgrade, and remote control | |
| 9. Input Ports: USB×4, DC, MIC | 10. Output Ports: VGA, HDMI, Audio | |
Our Service
Customization
Our technical support staff is made up of dedicated experts with years of industry experience. They are specialists in digital display customization to provide you with the best solution upon request.
Technical SupportFor technical assistance and troubleshooting, contact our technical support via phone or email, and professional engineers will provide you with the best solution. On-site service is available as well.
Repair and ReplacementAll LCD displays produced by INNELL are covered under a one-year warranty. Technical support and replacement parts are provided for free within the warranty period. Once the warranty expires, we will still provide technical support at affordable rates.
